TissueForge::Angle Struct Reference

A bond concerning an angle. More...

#include <tfAngle.h>

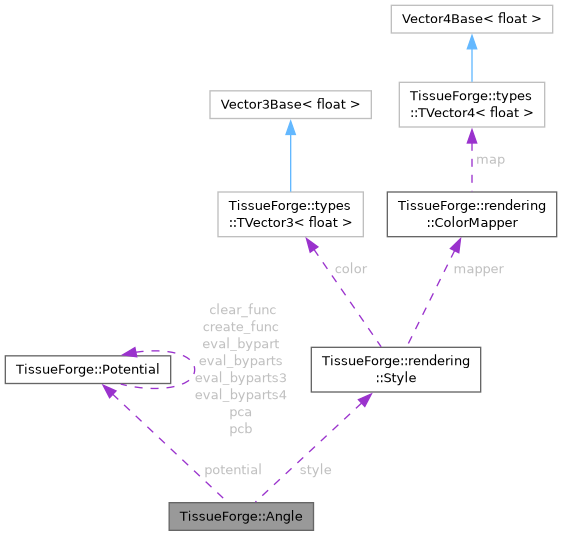

Collaboration diagram for TissueForge::Angle:

Public Member Functions
void	init (Potential *potential, struct ParticleHandle *p1, struct ParticleHandle *p2, struct ParticleHandle *p3, uint32_t flags=0)
std::string	toString ()
	Get a JSON string representation.

Static Public Member Functions
static rendering::Style *	styleDef ()
	Get the default style.
static AngleHandle *	create (Potential *potential, struct ParticleHandle *p1, struct ParticleHandle *p2, struct ParticleHandle *p3, uint32_t flags=0)
	Creates an angle bond.
static Angle *	fromString (const std::string &str)
	Create from a JSON string representation.

Public Attributes
uint32_t	flags
int	i
int	j
int	k
uint32_t	id
uint64_t	creation_time
FPTYPE	half_life
FPTYPE	dissociation_energy
FPTYPE	potential_energy
struct Potential *	potential
struct rendering::Style *	style

Detailed Description

A bond concerning an angle.

If you're building a model, you should probably instead be working with a AngleHandle.

Member Function Documentation

create()

static AngleHandle * TissueForge::Angle::create ( Potential * potential, struct ParticleHandle * p1, struct ParticleHandle * p2, struct ParticleHandle * p3, uint32_t flags = 0 )

static

Creates an angle bond.

Automatically updates when running on a CUDA device.

Parameters

potential	potential of the bond
p1	first outer particle
p2	center particle
p3	second outer particle
flags	angle flags

Returns

AngleHandle*

fromString()

static Angle * TissueForge::Angle::fromString ( const std::string & str )

static

Create from a JSON string representation.

The returned angle is not automatically registered with the engine.

Parameters

str

Member Data Documentation

half_life

FPTYPE TissueForge::Angle::half_life

half life decay time for this bond.

---

The documentation for this struct was generated from the following file:

• source/mdcore/include/tfAngle.h
