TissueForge::Dihedral Struct Reference

#include <tfDihedral.h>

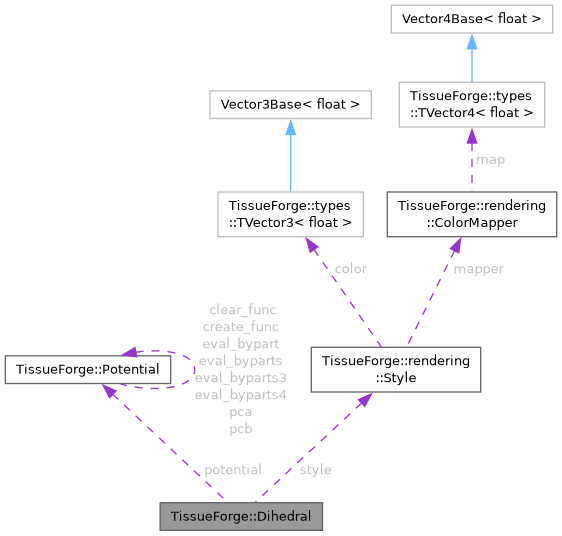

Collaboration diagram for TissueForge::Dihedral:

Public Member Functions
void	init (Potential *potential, ParticleHandle *p1, ParticleHandle *p2, ParticleHandle *p3, ParticleHandle *p4)
std::string	toString ()
	Get a JSON string representation.

Static Public Member Functions
static rendering::Style *	styleDef ()
	Get the default style.
static DihedralHandle *	create (Potential *potential, ParticleHandle *p1, ParticleHandle *p2, ParticleHandle *p3, ParticleHandle *p4)
	Creates a dihedral bond.
static Dihedral *	fromString (const std::string &str)
	Create from a JSON string representation.

Public Attributes
uint32_t	flags
int	i
int	j
int	k
int	l
uint32_t	id
uint64_t	creation_time
FPTYPE	half_life
FPTYPE	dissociation_energy
FPTYPE	potential_energy
struct Potential *	potential
struct rendering::Style *	style

Detailed Description

The dihedral structure

Member Function Documentation

create()

static DihedralHandle * TissueForge::Dihedral::create ( Potential * potential, ParticleHandle * p1, ParticleHandle * p2, ParticleHandle * p3, ParticleHandle * p4 )

static

Creates a dihedral bond.

Parameters

potential	potential of the bond
p1	first outer particle
p2	first center particle
p3	second center particle
p4	second outer particle

Returns

DihedralHandle*

fromString()

static Dihedral * TissueForge::Dihedral::fromString ( const std::string & str )

static

Create from a JSON string representation.

The returned dihedral is not automatically registered with the engine.

Parameters

str

Member Data Documentation

half_life

FPTYPE TissueForge::Dihedral::half_life

half life decay time for this bond.

---

The documentation for this struct was generated from the following file:

• source/mdcore/include/tfDihedral.h
