tfSpace_cell.h File Reference

#include "tf_platform.h"
#include <mdcore_config.h>
#include <pthread.h>
#include <random>
#include <iostream>

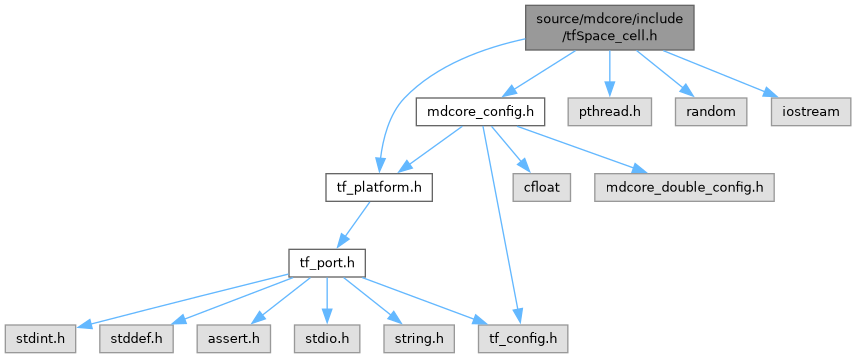

Include dependency graph for tfSpace_cell.h:

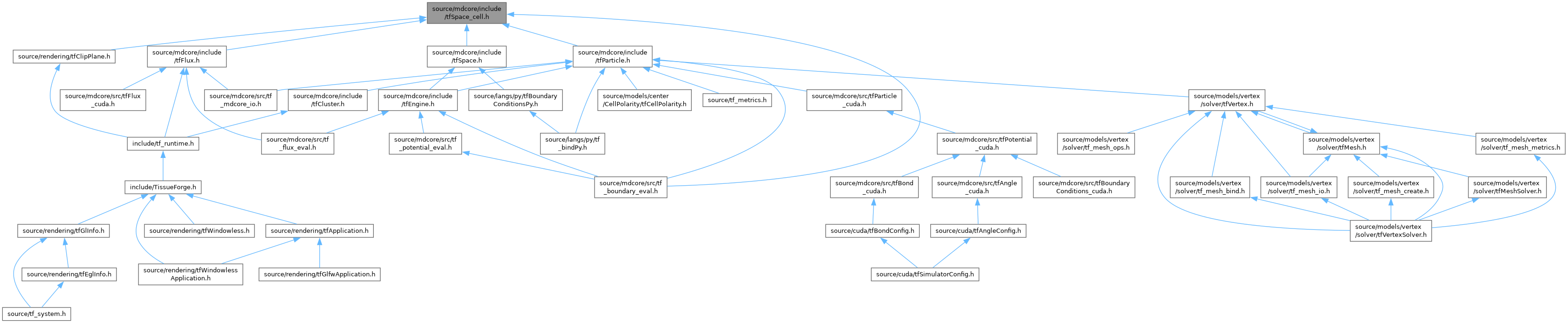

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	TissueForge::space_cell
	the space_cell structure More...

Namespaces
namespace	TissueForge
	Include Python header, disable linking to pythonX_d.lib on Windows in debug mode.

Macros
#define	cell_default_size   256
#define	cell_incr   10
#define	cell_partalign   64

Typedefs
typedef struct TissueForge::space_cell	TissueForge::space_cell
	the space_cell structure

Enumerations
enum	TissueForge::CellFlags {   cell_flag_none = 0 , cell_flag_ghost = 1 << 0 , cell_flag_wait = 1 << 1 , cell_flag_waited = 1 << 2 ,   cell_flag_marked = 1 << 3 , cell_flag_large = 1 << 4 , cell_active_top = 1 << 5 , cell_active_bottom = 1 << 6 ,   cell_active_left = 1 << 7 , cell_active_right = 1 << 8 , cell_active_front = 1 << 9 , cell_active_back = 1 << 10 ,   cell_periodic_top = 1 << 11 , cell_periodic_bottom = 1 << 12 , cell_periodic_left = 1 << 13 , cell_periodic_right = 1 << 14 ,   cell_periodic_front = 1 << 15 , cell_periodic_back = 1 << 16 , cell_periodic_x = cell_periodic_left | cell_periodic_right , cell_periodic_y = cell_periodic_front | cell_periodic_back ,   cell_periodic_z = cell_periodic_top | cell_periodic_bottom , cell_active_x = cell_active_left | cell_active_right , cell_active_y = cell_active_front | cell_active_back , cell_active_z = cell_active_top | cell_active_bottom ,   cell_active_any }

Functions
HRESULT	TissueForge::space_cell_init (struct space_cell *c, int *loc, FPTYPE *origin, FPTYPE *dim)
	Initialize the given cell.
struct Particle *	TissueForge::space_cell_add (struct space_cell *c, struct Particle *p, struct Particle **partlist)
	Add a particle to a cell.
HRESULT	TissueForge::space_cell_remove (struct space_cell *c, struct Particle *p, struct Particle **partlist)
	Remove a particle from a cell.
struct Particle *	TissueForge::space_cell_add_incomming (struct space_cell *c, struct Particle *p)
	Add a particle to the incomming array of a cell.
int	TissueForge::space_cell_add_incomming_multiple (struct space_cell *c, struct Particle *p, int count)
	Add one or more particles to the incomming array of a cell.
HRESULT	TissueForge::space_cell_welcome (struct space_cell *c, struct Particle **partlist)
	Move particles from the incomming buffer to the cell.
HRESULT	TissueForge::space_cell_load (struct space_cell *c, struct Particle *parts, int nr_parts, struct Particle **partlist, struct space_cell **celllist)
	Load a block of particles to the cell.
FPTYPE	TissueForge::space_cell_gaussian (int cell_id)
HRESULT	TissueForge::space_cell_flush (struct space_cell *c, struct Particle **partlist, struct space_cell **celllist)
	Flush all the parts from a #cell.
std::ostream &	operator<< (std::ostream &os, const TissueForge::space_cell *)

Variables
const char	TissueForge::cell_sortlistID [27]
const FPTYPE	TissueForge::cell_shift [13 *3]
const char	TissueForge::cell_flip [27]

Macro Definition Documentation

cell_partalign

#define cell_partalign   64

Alignment when allocating parts.
