A custom force function. More...

#include <tfForce.h>

Inheritance diagram for TissueForge::CustomForce:

[legend]

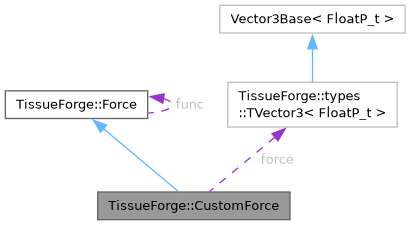

Collaboration diagram for TissueForge::CustomForce:

[legend]

Public Member Functions
virtual void	onTime (FPTYPE time)

virtual FVector3	getValue ()

void	setValue (const FVector3 &f)

void	setValue (UserForceFuncType *_userFunc=NULL)

FPTYPE	getPeriod ()

void	setPeriod (const FPTYPE &period)

bool	isCustom ()
	Tests whether this object is a custom force type.

	CustomForce (const FVector3 &f, const FPTYPE &period=std::numeric_limits< FPTYPE >::max())

	CustomForce (UserForceFuncType *f, const FPTYPE &period=std::numeric_limits< FPTYPE >::max())

Public Member Functions inherited from TissueForge::Force
HRESULT	bind_species (struct ParticleType *a_type, const std::string &coupling_symbol)
	Bind a force to a species.

Force &	operator+ (const Force &rhs)

virtual std::string	toString ()
	Get a JSON string representation.

Static Public Member Functions
static CustomForce *	fromForce (Force *f)
	Convert basic force to CustomForce.

Static Public Member Functions inherited from TissueForge::Force
static Berendsen *	berendsen_tstat (const FPTYPE &tau)
	Creates a Berendsen thermostat.

static Gaussian *	random (const FPTYPE &std, const FPTYPE &mean, const FPTYPE &duration=0.01)
	Creates a random force.

static Friction *	friction (const FPTYPE &coef)
	Creates a friction force.

static Force *	fromString (const std::string &str)
	Create from a JSON string representation.

Public Attributes
UserForceFuncType *	userFunc

FPTYPE	updateInterval

FPTYPE	lastUpdate

FVector3	force

Public Attributes inherited from TissueForge::Force
FORCE_TYPE	type = FORCE_FORCE

Force_EvalFcn	func

int	stateVectorIndex = -1

Detailed Description

A custom force function.

The force is updated according to an update frequency.

Member Function Documentation

◆ fromForce()

static CustomForce * TissueForge::CustomForce::fromForce ( Force * f )

static

Convert basic force to CustomForce.

If the basic force is not a CustomForce, then NULL is returned.

Parameters

f

Returns: CustomForce*

◆ isCustom()

bool TissueForge::CustomForce::isCustom ( )

inlinevirtual

Tests whether this object is a custom force type.

Returns: true if custom

Reimplemented from TissueForge::Force.

◆ onTime()

virtual void TissueForge::CustomForce::onTime ( FPTYPE time )

virtual

notify this user force object of a simulation time step,

this will check if interval has elapsed, and update the function.

throws std::exception if userfunc is not a valid kind.

◆ setValue() [1/2]

void TissueForge::CustomForce::setValue ( const FVector3 & f )

sets the value of the force to a vector

throws std::exception if invalid value.

◆ setValue() [2/2]

void TissueForge::CustomForce::setValue ( UserForceFuncType * _userFunc = NULL )

sets the value of the force from a user function. if a user function is passed, then it is stored as the user function of the force

throws std::exception if invalid value.

The documentation for this struct was generated from the following file:

source/mdcore/include/tfForce.h
