TissueForge::rendering::SubRenderer Struct Reference

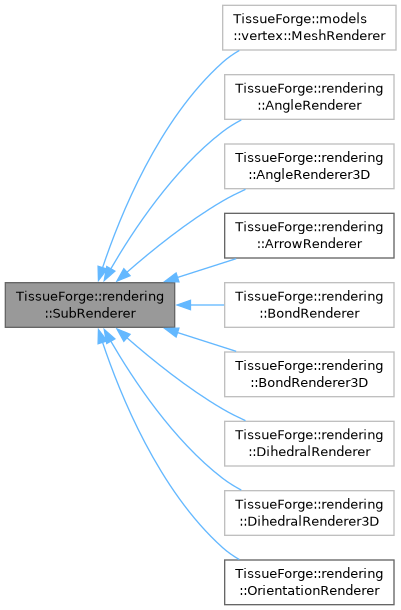

Inheritance diagram for TissueForge::rendering::SubRenderer:

Public Member Functions
virtual HRESULT	start (const std::vector< fVector4 > &clipPlanes)=0
	Starts the renderer.
virtual HRESULT	draw (ArcBallCamera *camera, const iVector2 &viewportSize, const fMatrix4 &modelViewMat)=0
	Updates visualization.
virtual const unsigned	addClipPlaneEquation (const Magnum::Vector4 &pe)
	Adds a clip plane equation.
virtual const unsigned	removeClipPlaneEquation (const unsigned int &id)
	Removes a clip plane equation.
virtual void	setClipPlaneEquation (unsigned id, const Magnum::Vector4 &pe)
	Sets a clip plane equation.
virtual void	setAmbientColor (const Magnum::Color3 &color)
	Sets the ambient color.
virtual void	setDiffuseColor (const Magnum::Color3 &color)
	Set the diffuse color.
virtual void	setSpecularColor (const Magnum::Color3 &color)
	Set the specular color.
virtual void	setShininess (float shininess)
	Sets the shininess.
virtual void	setLightDirection (const fVector3 &lightDir)
	Sets the light direction.
virtual void	setLightColor (const Magnum::Color3 &color)
	Sets the light color.

Member Function Documentation

addClipPlaneEquation()

virtual const unsigned TissueForge::rendering::SubRenderer::addClipPlaneEquation ( const Magnum::Vector4 & pe )

inlinevirtual

Adds a clip plane equation.

Parameters

pe	clip plane equation

Returns

const unsigned

Reimplemented in TissueForge::rendering::AngleRenderer3D, TissueForge::rendering::AngleRenderer, TissueForge::rendering::ArrowRenderer, TissueForge::rendering::BondRenderer3D, TissueForge::rendering::BondRenderer, TissueForge::rendering::DihedralRenderer3D, and TissueForge::rendering::DihedralRenderer.

draw()

virtual HRESULT TissueForge::rendering::SubRenderer::draw ( ArcBallCamera * camera, const iVector2 & viewportSize, const fMatrix4 & modelViewMat )

pure virtual

Updates visualization.

Parameters

camera	scene camera
viewportSize	scene viewport size
modelViewMat	scene model view matrix

Returns

HRESULT

Implemented in TissueForge::models::vertex::MeshRenderer, TissueForge::rendering::AngleRenderer3D, TissueForge::rendering::AngleRenderer, TissueForge::rendering::ArrowRenderer, TissueForge::rendering::BondRenderer3D, TissueForge::rendering::BondRenderer, TissueForge::rendering::DihedralRenderer3D, TissueForge::rendering::DihedralRenderer, and TissueForge::rendering::OrientationRenderer.

removeClipPlaneEquation()

virtual const unsigned TissueForge::rendering::SubRenderer::removeClipPlaneEquation ( const unsigned int & id )

inlinevirtual

Removes a clip plane equation.

Parameters

id	id of clip plane equation

Returns

const unsigned

Reimplemented in TissueForge::rendering::AngleRenderer3D, TissueForge::rendering::AngleRenderer, TissueForge::rendering::ArrowRenderer, TissueForge::rendering::BondRenderer3D, TissueForge::rendering::BondRenderer, TissueForge::rendering::DihedralRenderer3D, and TissueForge::rendering::DihedralRenderer.

setAmbientColor()

virtual void TissueForge::rendering::SubRenderer::setAmbientColor ( const Magnum::Color3 & color )

inlinevirtual

Sets the ambient color.

Parameters

color

Reimplemented in TissueForge::rendering::ArrowRenderer, and TissueForge::rendering::OrientationRenderer.

setClipPlaneEquation()

virtual void TissueForge::rendering::SubRenderer::setClipPlaneEquation ( unsigned id, const Magnum::Vector4 & pe )

inlinevirtual

Sets a clip plane equation.

Parameters

id	id of clip plane equation
pe	clip plane equation

Reimplemented in TissueForge::rendering::AngleRenderer3D, TissueForge::rendering::AngleRenderer, TissueForge::rendering::ArrowRenderer, TissueForge::rendering::BondRenderer3D, TissueForge::rendering::BondRenderer, TissueForge::rendering::DihedralRenderer3D, and TissueForge::rendering::DihedralRenderer.

setDiffuseColor()

virtual void TissueForge::rendering::SubRenderer::setDiffuseColor ( const Magnum::Color3 & color )

inlinevirtual

Set the diffuse color.

Parameters

color

Reimplemented in TissueForge::rendering::ArrowRenderer, and TissueForge::rendering::OrientationRenderer.

setLightColor()

virtual void TissueForge::rendering::SubRenderer::setLightColor ( const Magnum::Color3 & color )

inlinevirtual

Sets the light color.

Parameters

color

Reimplemented in TissueForge::rendering::ArrowRenderer, and TissueForge::rendering::OrientationRenderer.

setLightDirection()

virtual void TissueForge::rendering::SubRenderer::setLightDirection ( const fVector3 & lightDir )

inlinevirtual

Sets the light direction.

Parameters

lightDir

Reimplemented in TissueForge::rendering::ArrowRenderer, and TissueForge::rendering::OrientationRenderer.

setShininess()

virtual void TissueForge::rendering::SubRenderer::setShininess ( float shininess )

inlinevirtual

Sets the shininess.

Parameters

shininess

Reimplemented in TissueForge::rendering::ArrowRenderer, and TissueForge::rendering::OrientationRenderer.

setSpecularColor()

virtual void TissueForge::rendering::SubRenderer::setSpecularColor ( const Magnum::Color3 & color )

inlinevirtual

Set the specular color.

Parameters

color

Reimplemented in TissueForge::rendering::ArrowRenderer, and TissueForge::rendering::OrientationRenderer.

start()

virtual HRESULT TissueForge::rendering::SubRenderer::start ( const std::vector< fVector4 > & clipPlanes )

pure virtual

Starts the renderer.

Called by parent renderer once backend is initialized.

Parameters

clipPlanes

clip plane specification

Returns

HRESULT

Implemented in TissueForge::models::vertex::MeshRenderer, TissueForge::rendering::AngleRenderer3D, TissueForge::rendering::AngleRenderer, TissueForge::rendering::ArrowRenderer, TissueForge::rendering::BondRenderer3D, TissueForge::rendering::BondRenderer, TissueForge::rendering::DihedralRenderer3D, TissueForge::rendering::DihedralRenderer, and TissueForge::rendering::OrientationRenderer.

---

The documentation for this struct was generated from the following file:

• source/rendering/tfSubRenderer.h
