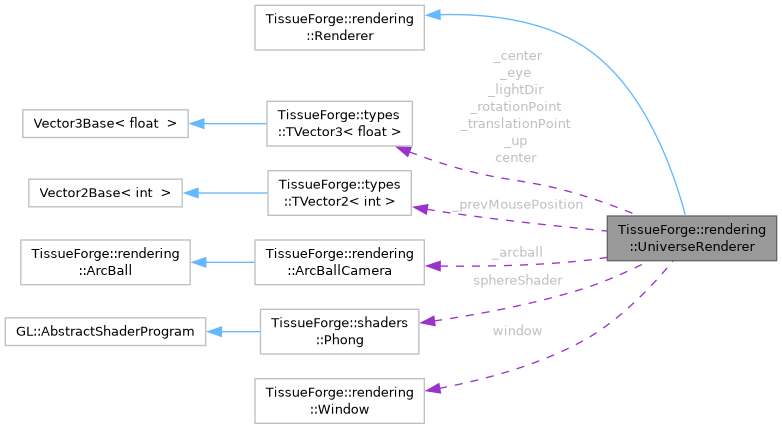

Collaboration diagram for TissueForge::rendering::UniverseRenderer:

[legend]

Public Member Functions
	UniverseRenderer (const Simulator::Config &conf, Window *win)

template<typename T >
UniverseRenderer &	draw (T &camera, const iVector2 &viewportSize)

bool &	isDirty ()

UniverseRenderer &	setDirty ()

shaders::ParticleSphereShader::ColorMode &	colorMode ()

UniverseRenderer &	setColorMode (shaders::ParticleSphereShader::ColorMode colorMode)

const Float	lineWidth ()

UniverseRenderer &	setLineWidth (const Float &lw)

const Float	lineWidthMin ()

const Float	lineWidthMax ()

Color3 &	ambientColor ()

UniverseRenderer &	setAmbientColor (const Color3 &color)

Color3 &	diffuseColor ()

UniverseRenderer &	setDiffuseColor (const Color3 &color)

Color3 &	specularColor ()

UniverseRenderer &	setSpecularColor (const Color3 &color)

Float &	shininess ()

UniverseRenderer &	setShininess (float shininess)

Color3 &	gridColor ()

UniverseRenderer &	setGridColor (const Color3 &color)

Color3 &	sceneBoxColor ()

UniverseRenderer &	setSceneBoxColor (const Color3 &color)

fVector3 &	lightDirection ()

UniverseRenderer &	setLightDirection (const fVector3 &lightDir)

Color3 &	lightColor ()

UniverseRenderer &	setLightColor (const Color3 &color)

Color3 &	backgroundColor ()

UniverseRenderer &	setBackgroundColor (const Color3 &color)

UniverseRenderer &	setModelViewTransform (const Magnum::Matrix4 &mat)

UniverseRenderer &	setProjectionTransform (const Magnum::Matrix4 &mat)

const bool	showingDiscretizationGrid () const

UniverseRenderer &	showDiscretizationGrid (const bool &show)

Color3 &	discretizationGridColor ()

UniverseRenderer &	setDiscretizationGridColor (const Color3 &color)

const fVector3 &	defaultEye () const

const fVector3 &	defaultCenter () const

const fVector3 &	defaultUp () const

void	onCursorMove (double xpos, double ypos)

void	onCursorEnter (int entered)

void	onMouseButton (int button, int action, int mods)

void	onRedraw ()

void	onWindowMove (int x, int y)

void	onWindowSizeChange (int x, int y)

void	onFramebufferSizeChange (int x, int y)

void	viewportEvent (const int w, const int h)

void	draw ()

int	clipPlaneCount () const

const unsigned	addClipPlaneEquation (const Magnum::Vector4 &pe)

const unsigned	removeClipPlaneEquation (const unsigned int &id)

void	setClipPlaneEquation (unsigned id, const Magnum::Vector4 &pe)

const Magnum::Vector4 &	getClipPlaneEquation (unsigned id)

const float	getZoomRate ()

void	setZoomRate (const float &zoomRate)

const float	getSpinRate ()

void	setSpinRate (const float &spinRate)

const float	getMoveRate ()

void	setMoveRate (const float &moveRate)

const bool	isLagging () const

void	enableLagging ()

void	disableLagging ()

void	toggleLagging ()

const float	getLagging () const

void	setLagging (const float &lagging)

const bool	getRendering3DBonds () const

void	setRendering3DBonds (const bool &_flag)

void	toggleRendering3DBonds ()

const bool	getRendering3DAngles () const

void	setRendering3DAngles (const bool &_flag)

void	toggleRendering3DAngles ()

const bool	getRendering3DDihedrals () const

void	setRendering3DDihedrals (const bool &_flag)

void	toggleRendering3DDihedrals ()

void	setRendering3DAll (const bool &_flag)

void	toggleRendering3DAll ()

void	viewportEvent (Platform::GlfwApplication::ViewportEvent &event)

void	cameraTranslateDown ()

void	cameraTranslateUp ()

void	cameraTranslateRight ()

void	cameraTranslateLeft ()

void	cameraTranslateForward ()

void	cameraTranslateBackward ()

void	cameraRotateDown ()

void	cameraRotateUp ()

void	cameraRotateLeft ()

void	cameraRotateRight ()

void	cameraRollLeft ()

void	cameraRollRight ()

void	cameraZoomIn ()

void	cameraZoomOut ()

void	keyPressEvent (Platform::GlfwApplication::KeyEvent &event)
	Key press event handling.

void	mousePressEvent (Platform::GlfwApplication::MouseEvent &event)

void	mouseReleaseEvent (Platform::GlfwApplication::MouseEvent &event)

void	mouseMoveEvent (Platform::GlfwApplication::MouseMoveEvent &event)
	Mouse move event handling.

void	mouseScrollEvent (Platform::GlfwApplication::MouseScrollEvent &event)

SubRenderer *	getSubRenderer (const SubRendererFlag &flag)

HRESULT	registerSubRenderer (SubRenderer *subrenderer)

void	decorateScene (const bool &decorate)
	Set flag to draw/not draw scene decorators (e.g., grid)

bool	sceneDecorated () const
	Get scene decorator flag value.

fVector3	unproject (const iVector2 &windowPosition, float depth) const

void	setupCallbacks ()

Static Public Member Functions
static int	maxClipPlaneCount ()

Public Attributes
bool	renderUniverse = true

bool	_dirty = false

bool	_decorateScene = true

bool	_showDiscretizationGrid = false

shaders::ParticleSphereShader::ColorMode	_colorMode = shaders::ParticleSphereShader::ColorMode::ConsistentRandom

Color3	_ambientColor {0.4f}

Color3	_diffuseColor {1.f}

Color3	_specularColor {0.2f}

Color3	_gridColor = {1.f, 1.f, 1.f}

Color3	_sceneBoxColor = {1.f, 1.f, 0.f}

Float	_shininess = 100.0f

fVector3	_lightDir {1.0f, 1.0f, 2.0f}

Color3	_lightColor = {0.9, 0.9, 0.9}

Color3	_clearColor {0.35f}

Color3	_discretizationGridColor {0.1, 0.1, 0.8}

fVector3	_eye

fVector3	_center

fVector3	_up

std::vector< Magnum::Vector4 >	_clipPlanes

Magnum::Matrix4	modelViewMat = Matrix4{Math::IdentityInit}

Magnum::Matrix4	projMat = Matrix4{Math::IdentityInit}

iVector2	_prevMousePosition

fVector3	_rotationPoint

fVector3	_translationPoint

Float	_lastDepth

float	sideLength

float	_zoomRate

float	_spinRate

float	_moveRate

ArcBallCamera *	_arcball

GL::Mesh	gridMesh {NoCreate}

Magnum::Matrix4	gridModelView

GL::Mesh	sceneBox {NoCreate}

shaders::Phong	sphereShader {NoCreate}

Shaders::Flat3D	wireframeShader {NoCreate}

GL::Buffer	sphereInstanceBuffer {NoCreate}

GL::Buffer	largeSphereInstanceBuffer {NoCreate}

GL::Mesh	sphereMesh {NoCreate}

GL::Mesh	largeSphereMesh {NoCreate}

GL::Mesh	discretizationGridMesh {NoCreate}

GL::Buffer	discretizationGridBuffer {NoCreate}

std::vector< SubRenderer * >	subRenderers

fVector3	center

Window *	window

Protected Attributes
float	_lagging

bool	_bonds3d_flags [3] = {false, false, false}

Member Function Documentation

◆ decorateScene()

void TissueForge::rendering::UniverseRenderer::decorateScene ( const bool & decorate )

Set flag to draw/not draw scene decorators (e.g., grid)

Parameters

decorate flag; true says to decorate

◆ disableLagging()

void TissueForge::rendering::UniverseRenderer::disableLagging ( )

Disable camera lagging

◆ enableLagging()

void TissueForge::rendering::UniverseRenderer::enableLagging ( )

Enable camera lagging

◆ getLagging()

const float TissueForge::rendering::UniverseRenderer::getLagging ( ) const

Get the camera lagging

◆ getRendering3DAngles()

const bool TissueForge::rendering::UniverseRenderer::getRendering3DAngles ( ) const

Get whether angles are renderered with 3D objects

◆ getRendering3DBonds()

const bool TissueForge::rendering::UniverseRenderer::getRendering3DBonds ( ) const

Get whether bonds are renderered with 3D objects

◆ getRendering3DDihedrals()

const bool TissueForge::rendering::UniverseRenderer::getRendering3DDihedrals ( ) const

Get whether dihedrals are renderered with 3D objects

◆ isLagging()

const bool TissueForge::rendering::UniverseRenderer::isLagging ( ) const

Test whether the camera is lagging

◆ keyPressEvent()

void TissueForge::rendering::UniverseRenderer::keyPressEvent ( Platform::GlfwApplication::KeyEvent & event )

Key press event handling.

When a key is pressed, actions are as follows by key and modifier:

D: toggle scene decorations
L: toggle lagging
R: reset camera
Arrow down: translate camera down
Arrow left: translate camera left
Arrow right: translate camera right
Arrow up: translate camera up
Ctrl + D: toggle discretization rendering
Ctrl + arrow down: zoom camera out
Ctrl + arrow left: roll camera left
Ctrl + arrow right: roll camera right
Ctrl + arrow up: zoom camera in
Shift + B: bottom view
Shift + F: front view
Shift + K: back view
Shift + L: left view
Shift + R: right view
Shift + T: top view
Shift + arrow down: rotate camera down
Shift + arrow left: rotate camera left
Shift + arrow right: rotate camera right
Shift + arrow up: rotate camera up
Shift + Ctrl + arrow down: translate backward
Shift + Ctrl + arrow up: translate forward

Parameters

event

◆ mouseMoveEvent()

void TissueForge::rendering::UniverseRenderer::mouseMoveEvent ( Platform::GlfwApplication::MouseMoveEvent & event )

Mouse move event handling.

When a mouse button is pressed, actions are as follows by modifier:

Shift: translates the camera
Ctrl: zooms the camera
None: rotates the camera

Parameters

event

◆ sceneDecorated()

bool TissueForge::rendering::UniverseRenderer::sceneDecorated ( ) const

Get scene decorator flag value.

Returns: true; false

◆ setLagging()

void TissueForge::rendering::UniverseRenderer::setLagging ( const float & lagging )

Set the camera lagging. Value must be in [0, 1)

◆ setRendering3DAll()

void TissueForge::rendering::UniverseRenderer::setRendering3DAll ( const bool & _flag )

Set whether bonds, angle and dihedrals are renderered with 3D objects

◆ setRendering3DAngles()

void TissueForge::rendering::UniverseRenderer::setRendering3DAngles ( const bool & _flag )

Set whether angles are renderered with 3D objects

◆ setRendering3DBonds()

void TissueForge::rendering::UniverseRenderer::setRendering3DBonds ( const bool & _flag )

Set whether bonds are renderered with 3D objects

◆ setRendering3DDihedrals()

void TissueForge::rendering::UniverseRenderer::setRendering3DDihedrals ( const bool & _flag )

Set whether dihedrals are renderered with 3D objects

◆ toggleLagging()

void TissueForge::rendering::UniverseRenderer::toggleLagging ( )

Toggle camera lagging

◆ toggleRendering3DAll()

void TissueForge::rendering::UniverseRenderer::toggleRendering3DAll ( )

Toggle whether bonds, angle and dihedrals are renderered with 3D objects

◆ toggleRendering3DAngles()

void TissueForge::rendering::UniverseRenderer::toggleRendering3DAngles ( )

Toggle whether angles are renderered with 3D objects

◆ toggleRendering3DBonds()

void TissueForge::rendering::UniverseRenderer::toggleRendering3DBonds ( )

Toggle whether bonds are renderered with 3D objects

◆ toggleRendering3DDihedrals()

void TissueForge::rendering::UniverseRenderer::toggleRendering3DDihedrals ( )

Toggle whether dihedrals are renderered with 3D objects

Member Data Documentation

◆ modelViewMat

Magnum::Matrix4 TissueForge::rendering::UniverseRenderer::modelViewMat = Matrix4{Math::IdentityInit}

Only set a single combined matrix in the shader, this way, the shader only performs a single matrix multiply of the vertices, update the shader matrix whenever any of these change.

multiplication order is the reverse of the pipeline. Therefore you do totalmat = proj * view * model.

The documentation for this struct was generated from the following file:

source/rendering/tfUniverseRenderer.h
