tf_metrics.h File Reference

#include "TissueForge_private.h"
#include "tfParticle.h"
#include <set>
#include <vector>

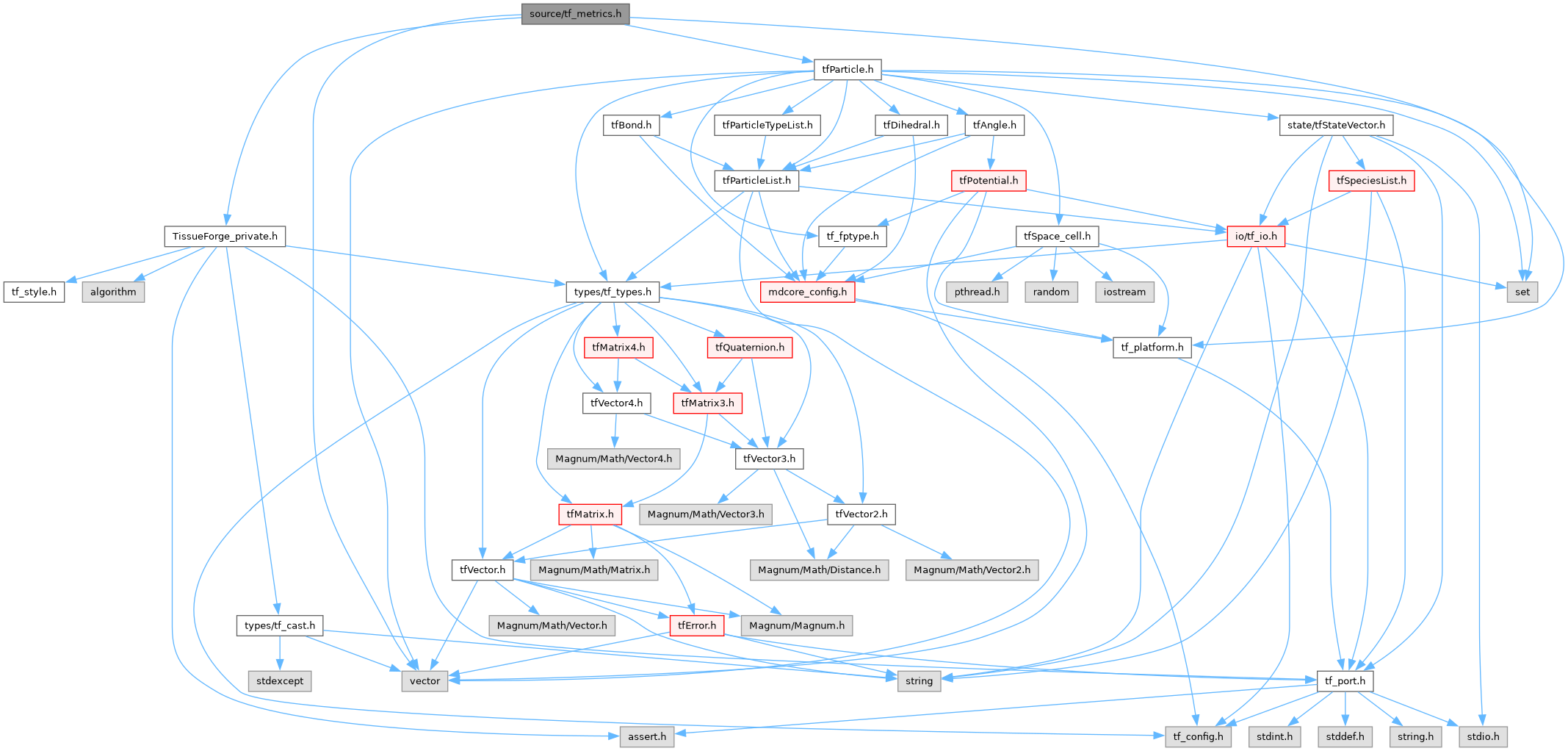

Include dependency graph for tf_metrics.h:

Go to the source code of this file.

Namespaces
namespace	TissueForge
	Include Python header, disable linking to pythonX_d.lib on Windows in debug mode.
namespace	TissueForge::metrics
	Tissue Forge simulation metrics.

Functions
FVector3	TissueForge::metrics::relativePosition (const FVector3 &pos, const FVector3 &origin, const bool &comp_bc=true)
	Computes the relative position with respect to an origin while optionally account for boundary conditions.
ParticleList	TissueForge::metrics::neighborhoodParticles (const FVector3 &position, const FloatP_t &dist, const bool &comp_bc=true)
HRESULT	TissueForge::metrics::calculateVirial (FloatP_t *origin, FloatP_t radius, const std::set< short int > &typeIds, FloatP_t *tensor)
HRESULT	TissueForge::metrics::particlesVirial (int32_t *parts, uint16_t nr_parts, uint32_t flags, FloatP_t *tensor)
HRESULT	TissueForge::metrics::particlesRadiusOfGyration (int32_t *parts, uint16_t nr_parts, FloatP_t *result)
HRESULT	TissueForge::metrics::particlesCenterOfMass (int32_t *parts, uint16_t nr_parts, FloatP_t *result)
HRESULT	TissueForge::metrics::particlesCenterOfGeometry (int32_t *parts, uint16_t nr_parts, FloatP_t *result)
HRESULT	TissueForge::metrics::particlesMomentOfInertia (int32_t *parts, uint16_t nr_parts, FloatP_t *result)
FVector3	TissueForge::metrics::cartesianToSpherical (const FVector3 &postion, const FVector3 &origin)
HRESULT	TissueForge::metrics::particleNeighbors (struct Particle *part, FloatP_t radius, const std::set< short int > *typeIds, uint16_t *nr_parts, int32_t **parts)
std::vector< std::vector< std::vector< ParticleList > > >	TissueForge::metrics::particleGrid (const iVector3 &shape)
HRESULT	TissueForge::metrics::particleGrid (const iVector3 &shape, ParticleList *result)
FVector3	TissueForge::metrics::eigenVals (const FMatrix3 &mat, const bool &symmetric=false)
	Compute the eigenvalues of a 3x3 matrix.
FVector4	TissueForge::metrics::eigenVals (const FMatrix4 &mat, const bool &symmetric=false)
	Compute the eigenvalues of a 4x4 matrix.
std::pair< FVector3 FMatrix3 >	TissueForge::metrics::eigenVecsVals (const FMatrix3 &mat, const bool &symmetric=false)
	Compute the eigenvectors and eigenvalues of a 3x3 matrix.
std::pair< FVector4 FMatrix4 >	TissueForge::metrics::eigenVecsVals (const FMatrix4 &mat, const bool &symmetric=false)
	Compute the eigenvectors and eigenvalues of a 4x4 matrix.
