#include "TissueForge_private.h"
#include "tf_util.h"
#include "tfLogger.h"
#include "rendering/tfGlInfo.h"
#include "rendering/tfEglInfo.h"
#include "rendering/tfUniverseRenderer.h"
#include "rendering/tfArrowRenderer.h"

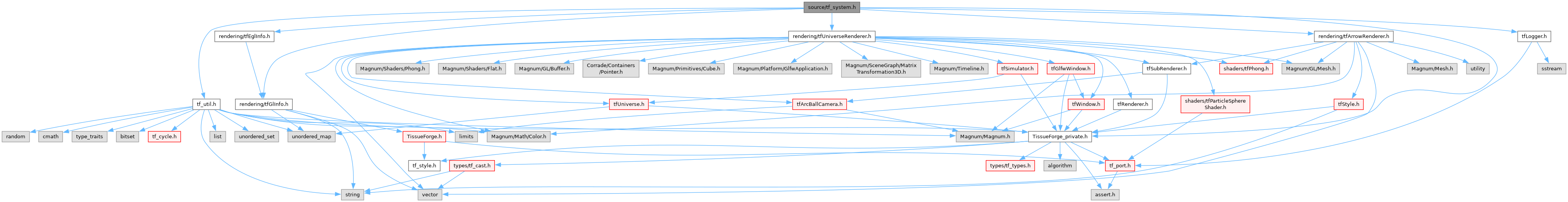

Include dependency graph for tf_system.h:

Namespaces
namespace	TissueForge
	Include Python header, disable linking to pythonX_d.lib on Windows in debug mode.

Functions
void	TissueForge::system::printPerformanceCounters ()

HRESULT	TissueForge::system::LoggerCallbackImpl (LogEvent, std::ostream *)

std::tuple< char *size_t >	TissueForge::system::imageData ()

HRESULT	TissueForge::system::screenshot (const std::string &filePath)
	Save a screenshot of the current scene.

HRESULT	TissueForge::system::screenshot (const std::string &filePath, const bool &decorate, const FVector3 &bgcolor)
	Save a screenshot of the current scene.

bool	TissueForge::system::contextHasCurrent ()

HRESULT	TissueForge::system::contextMakeCurrent ()

HRESULT	TissueForge::system::contextRelease ()

bool	TissueForge::system::cameraIsLagging ()

HRESULT	TissueForge::system::cameraEnableLagging ()

HRESULT	TissueForge::system::cameraDisableLagging ()

HRESULT	TissueForge::system::cameraToggleLagging ()

float	TissueForge::system::cameraGetLagging ()

HRESULT	TissueForge::system::cameraSetLagging (const float &lagging)

HRESULT	TissueForge::system::cameraMoveTo (const FVector3 &eye, const FVector3 &center, const FVector3 &up)
	Set the camera view parameters.

HRESULT	TissueForge::system::cameraMoveTo (const FVector3 &center, const FQuaternion &rotation, const float &zoom)
	Set the camera view parameters.

HRESULT	TissueForge::system::cameraViewBottom ()
	Move the camera to view the domain from the bottm.

HRESULT	TissueForge::system::cameraViewTop ()
	Move the camera to view the domain from the top.

HRESULT	TissueForge::system::cameraViewLeft ()
	Move the camera to view the domain from the left.

HRESULT	TissueForge::system::cameraViewRight ()
	Move the camera to view the domain from the right.

HRESULT	TissueForge::system::cameraViewBack ()
	Move the camera to view the domain from the back.

HRESULT	TissueForge::system::cameraViewFront ()
	Move the camera to view the domain from the front.

HRESULT	TissueForge::system::cameraReset ()
	Reset the camera.

HRESULT	TissueForge::system::cameraRotateMouse (const iVector2 &mousePos)

HRESULT	TissueForge::system::cameraTranslateMouse (const iVector2 &mousePos)

HRESULT	TissueForge::system::cameraTranslateDown ()
	Translate the camera down.

HRESULT	TissueForge::system::cameraTranslateUp ()
	Translate the camera up.

HRESULT	TissueForge::system::cameraTranslateRight ()
	Translate the camera right.

HRESULT	TissueForge::system::cameraTranslateLeft ()
	Translate the camera left.

HRESULT	TissueForge::system::cameraTranslateForward ()
	Translate the camera forward.

HRESULT	TissueForge::system::cameraTranslateBackward ()
	Translate the camera backward.

HRESULT	TissueForge::system::cameraRotateDown ()
	Rotate the camera down.

HRESULT	TissueForge::system::cameraRotateUp ()
	Rotate the camera up.

HRESULT	TissueForge::system::cameraRotateLeft ()
	Rotate the camera left.

HRESULT	TissueForge::system::cameraRotateRight ()
	Rotate the camera right.

HRESULT	TissueForge::system::cameraRollLeft ()
	Roll the camera left.

HRESULT	TissueForge::system::cameraRollRight ()
	Rotate the camera right.

HRESULT	TissueForge::system::cameraZoomIn ()
	Zoom the camera in.

HRESULT	TissueForge::system::cameraZoomOut ()
	Zoom the camera out.

HRESULT	TissueForge::system::cameraInitMouse (const iVector2 &mousePos)

HRESULT	TissueForge::system::cameraTranslateBy (const FVector2 &trans)

HRESULT	TissueForge::system::cameraZoomBy (const float &delta)
	Zoom the camera by an increment in distance.

HRESULT	TissueForge::system::cameraZoomTo (const float &distance)
	Zoom the camera to a distance.

HRESULT	TissueForge::system::cameraRotateToAxis (const FVector3 &axis, const float &distance)
	Rotate the camera to a point from the view center a distance along an axis.

HRESULT	TissueForge::system::cameraRotateToEulerAngle (const FVector3 &angles)
	Rotate the camera to a set of Euler angles.

HRESULT	TissueForge::system::cameraRotateByEulerAngle (const FVector3 &angles)
	Rotate the camera by a set of Euler angles.

FVector3	TissueForge::system::cameraCenter ()
	Get the current camera view center position.

FQuaternion	TissueForge::system::cameraRotation ()
	Get the current camera rotation.

float	TissueForge::system::cameraZoom ()
	Get the current camera zoom.

struct rendering::UniverseRenderer *	TissueForge::system::getRenderer ()
	Get the universe renderer.

const bool	TissueForge::system::getRendering3DBonds ()

void	TissueForge::system::setRendering3DBonds (const bool &_flag)

void	TissueForge::system::toggleRendering3DBonds ()

const bool	TissueForge::system::getRendering3DAngles ()

void	TissueForge::system::setRendering3DAngles (const bool &_flag)

void	TissueForge::system::toggleRendering3DAngles ()

const bool	TissueForge::system::getRendering3DDihedrals ()

void	TissueForge::system::setRendering3DDihedrals (const bool &_flag)

void	TissueForge::system::toggleRendering3DDihedrals ()

void	TissueForge::system::setRendering3DAll (const bool &_flag)

void	TissueForge::system::toggleRendering3DAll ()

const FloatP_t	TissueForge::system::getLineWidth ()

HRESULT	TissueForge::system::setLineWidth (const FloatP_t &lineWidth)

const FloatP_t	TissueForge::system::getLineWidthMin ()

const FloatP_t	TissueForge::system::getLineWidthMax ()

FVector3	TissueForge::system::getAmbientColor ()
	Get the ambient color.

HRESULT	TissueForge::system::setAmbientColor (const FVector3 &color)
	Set the ambient color.

HRESULT	TissueForge::system::setAmbientColor (const FVector3 &color, const unsigned int &srFlag)
	Set the ambient color of a subrenderer.

FVector3	TissueForge::system::getDiffuseColor ()
	Get the diffuse color.

HRESULT	TissueForge::system::setDiffuseColor (const FVector3 &color)
	Set the diffuse color.

HRESULT	TissueForge::system::setDiffuseColor (const FVector3 &color, const unsigned int &srFlag)
	Set the diffuse color of a subrenderer.

FVector3	TissueForge::system::getSpecularColor ()
	Get specular color.

HRESULT	TissueForge::system::setSpecularColor (const FVector3 &color)
	Set the specular color.

HRESULT	TissueForge::system::setSpecularColor (const FVector3 &color, const unsigned int &srFlag)
	Set the specular color of a subrenderer.

float	TissueForge::system::getShininess ()
	Get the shininess.

HRESULT	TissueForge::system::setShininess (const float &shininess)
	Set the shininess.

HRESULT	TissueForge::system::setShininess (const float &shininess, const unsigned int &srFlag)
	Set the shininess of a subrenderer.

FVector3	TissueForge::system::getGridColor ()
	Get the grid color.

HRESULT	TissueForge::system::setGridColor (const FVector3 &color)
	Set the grid color.

FVector3	TissueForge::system::getSceneBoxColor ()
	Get the scene box color.

HRESULT	TissueForge::system::setSceneBoxColor (const FVector3 &color)
	Set the scene box color.

FVector3	TissueForge::system::getLightDirection ()
	Get the light direction.

HRESULT	TissueForge::system::setLightDirection (const FVector3 &lightDir)
	Set the light direction.

HRESULT	TissueForge::system::setLightDirection (const FVector3 &lightDir, const unsigned int &srFlag)
	Set the light direction of a subrenderer.

FVector3	TissueForge::system::getLightColor ()
	Get the light color.

HRESULT	TissueForge::system::setLightColor (const FVector3 &color)
	Set the light color.

HRESULT	TissueForge::system::setLightColor (const FVector3 &color, const unsigned int &srFlag)
	Set the light color of a subrenderer.

FVector3	TissueForge::system::getBackgroundColor ()
	Get the background color.

HRESULT	TissueForge::system::setBackgroundColor (const FVector3 &color)
	Set the background color.

bool	TissueForge::system::decorated ()
	Test whether the rendered scene is decorated.

HRESULT	TissueForge::system::decorateScene (const bool &decorate)
	Set flag to draw/not draw scene decorators (e.g., grid)

bool	TissueForge::system::showingDiscretization ()
	Test whether discretization is current shown.

HRESULT	TissueForge::system::showDiscretization (const bool &show)
	Set flag to draw/not draw discretization.

FVector3	TissueForge::system::getDiscretizationColor ()
	Get the current color of the discretization grid.

HRESULT	TissueForge::system::setDiscretizationColor (const FVector3 &color)
	Set the color of the discretization grid.

HRESULT	TissueForge::system::viewReshape (const iVector2 &windowSize)

std::string	TissueForge::system::performanceCounters ()

std::unordered_map< std::string bool >	TissueForge::system::cpu_info ()
	Get CPU info.

std::list< std::string >	TissueForge::system::compile_flags ()
	Get compiler flags of this installation.

std::unordered_map< std::string std::string >	TissueForge::system::gl_info ()
	Get OpenGL info.

std::string	TissueForge::system::egl_info ()
	Get EGL info.

std::vector< std::string >	TissueForge::system::colorMapperNames ()
	Get all available color mapper names.

int	TissueForge::system::addRenderArrow (rendering::ArrowData *arrow)
	Adds a vector visualization specification.

std::pair< int rendering::ArrowData * >	TissueForge::system::addRenderArrow (const FVector3 &position, const FVector3 &components, const rendering::Style &style, const float &scale=1.0)
	Adds a vector visualization specification.

HRESULT	TissueForge::system::removeRenderArrow (const int &arrowId)
	Removes a vector visualization specification.

rendering::ArrowData *	TissueForge::system::getRenderArrow (const int &arrowId)
	Gets a vector visualization specification.

Function Documentation

◆ addRenderArrow() [1/2]

std::pair< int rendering::ArrowData * > TissueForge::system::addRenderArrow	(	const FVector3 &	position,
		const FVector3 &	components,
		const rendering::Style &	style,
		const float &	scale = 1.0 )

Adds a vector visualization specification.

The passed pointer is borrowed. The client is responsible for maintaining the underlying data. The returned integer can be used to reference the arrow when doing subsequent operations with the renderer (e.g., removing an arrow from the scene).

Parameters

position	position of vector
components	components of vector
style	style of vector
scale	scale of vector; defaults to 1.0

Returns: id of arrow according to the renderer and arrow

◆ addRenderArrow() [2/2]

int TissueForge::system::addRenderArrow ( rendering::ArrowData * arrow )

Adds a vector visualization specification.

The passed pointer is borrowed. The client is responsible for maintaining the underlying data. The returned integer can be used to reference the arrow when doing subsequent operations with the renderer (e.g., removing an arrow from the scene).

Parameters

arrow pointer to visualization specs

Returns: id of arrow according to the renderer

◆ cameraCenter()

FVector3 TissueForge::system::cameraCenter ( )

Get the current camera view center position.

Returns: FVector3

◆ cameraDisableLagging()

HRESULT TissueForge::system::cameraDisableLagging ( )

Disable camera lagging

◆ cameraEnableLagging()

HRESULT TissueForge::system::cameraEnableLagging ( )

Enable camera lagging

◆ cameraGetLagging()

float TissueForge::system::cameraGetLagging ( )

Get the camera lagging

◆ cameraIsLagging()

bool TissueForge::system::cameraIsLagging ( )

Test whether the camera is lagging

◆ cameraMoveTo() [1/2]

HRESULT TissueForge::system::cameraMoveTo	(	const FVector3 &	center,
		const FQuaternion &	rotation,
		const float &	zoom )

Set the camera view parameters.

Parameters

center	target camera view center position
rotation	target camera rotation
zoom	target camera zoom

Returns: HRESULT

◆ cameraMoveTo() [2/2]

HRESULT TissueForge::system::cameraMoveTo	(	const FVector3 &	eye,
		const FVector3 &	center,
		const FVector3 &	up )

Set the camera view parameters.

Parameters

eye	camera eye
center	view center
up	view upward direction

Returns: HRESULT

◆ cameraReset()

HRESULT TissueForge::system::cameraReset ( )

Reset the camera.

Returns: HRESULT

◆ cameraRollLeft()

HRESULT TissueForge::system::cameraRollLeft ( )

Roll the camera left.

Returns: HRESULT

◆ cameraRollRight()

HRESULT TissueForge::system::cameraRollRight ( )

Rotate the camera right.

Returns: HRESULT

◆ cameraRotateByEulerAngle()

HRESULT TissueForge::system::cameraRotateByEulerAngle ( const FVector3 & angles )

Rotate the camera by a set of Euler angles.

Rotations are Z-Y-X.

Parameters

angles

Returns: HRESULT

◆ cameraRotateDown()

HRESULT TissueForge::system::cameraRotateDown ( )

Rotate the camera down.

Returns: HRESULT

◆ cameraRotateLeft()

HRESULT TissueForge::system::cameraRotateLeft ( )

Rotate the camera left.

Returns: HRESULT

◆ cameraRotateRight()

HRESULT TissueForge::system::cameraRotateRight ( )

Rotate the camera right.

Returns: HRESULT

◆ cameraRotateToAxis()

HRESULT TissueForge::system::cameraRotateToAxis	(	const FVector3 &	axis,
		const float &	distance )

Rotate the camera to a point from the view center a distance along an axis.

Only rotates the view to the given eye position.

Parameters

axis	axis from the view center
distance	distance along the axis

Returns: HRESULT

◆ cameraRotateToEulerAngle()

HRESULT TissueForge::system::cameraRotateToEulerAngle ( const FVector3 & angles )

Rotate the camera to a set of Euler angles.

Rotations are Z-Y-X.

Parameters

angles

Returns: HRESULT

◆ cameraRotateUp()

HRESULT TissueForge::system::cameraRotateUp ( )

Rotate the camera up.

Returns: HRESULT

◆ cameraRotation()

FQuaternion TissueForge::system::cameraRotation ( )

Get the current camera rotation.

Returns: FQuaternion

◆ cameraSetLagging()

HRESULT TissueForge::system::cameraSetLagging ( const float & lagging )

Set the camera lagging. Value must be in [0, 1)

◆ cameraToggleLagging()

HRESULT TissueForge::system::cameraToggleLagging ( )

Toggle camera lagging

◆ cameraTranslateBackward()

HRESULT TissueForge::system::cameraTranslateBackward ( )

Translate the camera backward.

Returns: HRESULT

◆ cameraTranslateDown()

HRESULT TissueForge::system::cameraTranslateDown ( )

Translate the camera down.

Returns: HRESULT

◆ cameraTranslateForward()

HRESULT TissueForge::system::cameraTranslateForward ( )

Translate the camera forward.

Returns: HRESULT

◆ cameraTranslateLeft()

HRESULT TissueForge::system::cameraTranslateLeft ( )

Translate the camera left.

Returns: HRESULT

◆ cameraTranslateRight()

HRESULT TissueForge::system::cameraTranslateRight ( )

Translate the camera right.

Returns: HRESULT

◆ cameraTranslateUp()

HRESULT TissueForge::system::cameraTranslateUp ( )

Translate the camera up.

Returns: HRESULT

◆ cameraViewBack()

HRESULT TissueForge::system::cameraViewBack ( )

Move the camera to view the domain from the back.

Returns: HRESULT

◆ cameraViewBottom()

HRESULT TissueForge::system::cameraViewBottom ( )

Move the camera to view the domain from the bottm.

Returns: HRESULT

◆ cameraViewFront()

HRESULT TissueForge::system::cameraViewFront ( )

Move the camera to view the domain from the front.

Returns: HRESULT

◆ cameraViewLeft()

HRESULT TissueForge::system::cameraViewLeft ( )

Move the camera to view the domain from the left.

Returns: HRESULT

◆ cameraViewRight()

HRESULT TissueForge::system::cameraViewRight ( )

Move the camera to view the domain from the right.

Returns: HRESULT

◆ cameraViewTop()

HRESULT TissueForge::system::cameraViewTop ( )

Move the camera to view the domain from the top.

Returns: HRESULT

◆ cameraZoom()

float TissueForge::system::cameraZoom ( )

Get the current camera zoom.

Returns: float

◆ cameraZoomBy()

HRESULT TissueForge::system::cameraZoomBy ( const float & delta )

Zoom the camera by an increment in distance.

Positive values zoom in.

Parameters

delta zoom increment

Returns: HRESULT

◆ cameraZoomIn()

HRESULT TissueForge::system::cameraZoomIn ( )

Zoom the camera in.

Returns: HRESULT

◆ cameraZoomOut()

HRESULT TissueForge::system::cameraZoomOut ( )

Zoom the camera out.

Returns: HRESULT

◆ cameraZoomTo()

HRESULT TissueForge::system::cameraZoomTo ( const float & distance )

Zoom the camera to a distance.

Parameters

distance zoom distance

Returns: HRESULT

◆ compile_flags()

std::list< std::string > TissueForge::system::compile_flags ( )

Get compiler flags of this installation.

Returns: std::list<std::string>

◆ cpu_info()

std::unordered_map< std::string bool > TissueForge::system::cpu_info ( )

Get CPU info.

Returns: std::unordered_map<std::string, bool>

◆ decorated()

bool TissueForge::system::decorated ( )

Test whether the rendered scene is decorated.

Returns: true; false

◆ decorateScene()

HRESULT TissueForge::system::decorateScene ( const bool & decorate )

Set flag to draw/not draw scene decorators (e.g., grid)

Parameters

decorate flag; true says to decorate

Returns: HRESULT

◆ egl_info()

std::string TissueForge::system::egl_info ( )

Get EGL info.

Returns: std::string

◆ getAmbientColor()

FVector3 TissueForge::system::getAmbientColor ( )

Get the ambient color.

Returns: FVector3

◆ getBackgroundColor()

FVector3 TissueForge::system::getBackgroundColor ( )

Get the background color.

Returns: FVector3

◆ getDiffuseColor()

FVector3 TissueForge::system::getDiffuseColor ( )

Get the diffuse color.

Returns: FVector3

◆ getDiscretizationColor()

FVector3 TissueForge::system::getDiscretizationColor ( )

Get the current color of the discretization grid.

Returns: FVector3

◆ getGridColor()

FVector3 TissueForge::system::getGridColor ( )

Get the grid color.

Returns: FVector3

◆ getLightColor()

FVector3 TissueForge::system::getLightColor ( )

Get the light color.

Returns: FVector3

◆ getLightDirection()

FVector3 TissueForge::system::getLightDirection ( )

Get the light direction.

Returns: FVector3

◆ getLineWidth()

const FloatP_t TissueForge::system::getLineWidth ( )

Get the line width

◆ getLineWidthMax()

const FloatP_t TissueForge::system::getLineWidthMax ( )

Get the maximum line width

◆ getLineWidthMin()

const FloatP_t TissueForge::system::getLineWidthMin ( )

Get the minimum line width

◆ getRenderArrow()

rendering::ArrowData * TissueForge::system::getRenderArrow ( const int & arrowId )

Gets a vector visualization specification.

Parameters

arrowId id of arrow according to the renderer

◆ getRenderer()

struct rendering::UniverseRenderer * TissueForge::system::getRenderer ( )

Get the universe renderer.

Returns: struct rendering::UniverseRenderer*

◆ getRendering3DAngles()

const bool TissueForge::system::getRendering3DAngles ( )

Get whether angles are renderered with 3D objects

◆ getRendering3DBonds()

const bool TissueForge::system::getRendering3DBonds ( )

Get whether bonds are renderered with 3D objects

◆ getRendering3DDihedrals()

const bool TissueForge::system::getRendering3DDihedrals ( )

Get whether dihedrals are renderered with 3D objects

◆ getSceneBoxColor()

FVector3 TissueForge::system::getSceneBoxColor ( )

Get the scene box color.

Returns: FVector3

◆ getShininess()

float TissueForge::system::getShininess ( )

Get the shininess.

Returns: float

◆ getSpecularColor()

FVector3 TissueForge::system::getSpecularColor ( )

Get specular color.

Returns: FVector3

◆ gl_info()

std::unordered_map< std::string std::string > TissueForge::system::gl_info ( )

Get OpenGL info.

Returns: std::unordered_map<std::string, std::string>

◆ removeRenderArrow()

HRESULT TissueForge::system::removeRenderArrow ( const int & arrowId )

Removes a vector visualization specification.

The removed pointer is only forgotten. The client is responsible for clearing the underlying data.

Parameters

arrowId id of arrow according to the renderer

◆ screenshot() [1/2]

HRESULT TissueForge::system::screenshot ( const std::string & filePath )

Save a screenshot of the current scene.

File formats currently supported are

Windows Bitmap (.bmp)
Radiance HDR (.hdr)
JPEG (.jpe, .jpg, .jpeg)
PNG (.png)
Truevision TGA (.tga)

Parameters

filePath path of file to save

Returns: HRESULT

◆ screenshot() [2/2]

HRESULT TissueForge::system::screenshot	(	const std::string &	filePath,
		const bool &	decorate,
		const FVector3 &	bgcolor )

Save a screenshot of the current scene.

File formats currently supported are

Windows Bitmap (.bmp)
Radiance HDR (.hdr)
JPEG (.jpe, .jpg, .jpeg)
PNG (.png)
Truevision TGA (.tga)

Parameters

filePath	path of file to save
decorate	flag to decorate the scene in the screenshot
bgcolor	background color of the scene in the screenshot

Returns: HRESULT

◆ setAmbientColor() [1/2]

HRESULT TissueForge::system::setAmbientColor ( const FVector3 & color )

Set the ambient color.

Parameters

color

Returns: HRESULT

◆ setAmbientColor() [2/2]

HRESULT TissueForge::system::setAmbientColor	(	const FVector3 &	color,
		const unsigned int &	srFlag )

Set the ambient color of a subrenderer.

Parameters

color
srFlag

Returns: HRESULT

◆ setBackgroundColor()

HRESULT TissueForge::system::setBackgroundColor ( const FVector3 & color )

Set the background color.

Parameters

color

Returns: HRESULT

◆ setDiffuseColor() [1/2]

HRESULT TissueForge::system::setDiffuseColor ( const FVector3 & color )

Set the diffuse color.

Parameters

color

Returns: HRESULT

◆ setDiffuseColor() [2/2]

HRESULT TissueForge::system::setDiffuseColor	(	const FVector3 &	color,
		const unsigned int &	srFlag )

Set the diffuse color of a subrenderer.

Parameters

color
srFlag

Returns: HRESULT

◆ setDiscretizationColor()

HRESULT TissueForge::system::setDiscretizationColor ( const FVector3 & color )

Set the color of the discretization grid.

Parameters

color

Returns: HRESULT

◆ setGridColor()

HRESULT TissueForge::system::setGridColor ( const FVector3 & color )

Set the grid color.

Parameters

color

Returns: HRESULT

◆ setLightColor() [1/2]

HRESULT TissueForge::system::setLightColor ( const FVector3 & color )

Set the light color.

Parameters

color

Returns: HRESULT

◆ setLightColor() [2/2]

HRESULT TissueForge::system::setLightColor	(	const FVector3 &	color,
		const unsigned int &	srFlag )

Set the light color of a subrenderer.

Parameters

color
srFlag

Returns: HRESULT

◆ setLightDirection() [1/2]

HRESULT TissueForge::system::setLightDirection ( const FVector3 & lightDir )

Set the light direction.

Parameters

lightDir

Returns: HRESULT

◆ setLightDirection() [2/2]

HRESULT TissueForge::system::setLightDirection	(	const FVector3 &	lightDir,
		const unsigned int &	srFlag )

Set the light direction of a subrenderer.

Parameters

lightDir
srFlag

Returns: HRESULT

◆ setLineWidth()

HRESULT TissueForge::system::setLineWidth ( const FloatP_t & lineWidth )

Set the line width

◆ setRendering3DAll()

void TissueForge::system::setRendering3DAll ( const bool & _flag )

Set whether bonds, angle and dihedrals are renderered with 3D objects

◆ setRendering3DAngles()

void TissueForge::system::setRendering3DAngles ( const bool & _flag )

Set whether angles are renderered with 3D objects

◆ setRendering3DBonds()

void TissueForge::system::setRendering3DBonds ( const bool & _flag )

Set whether bonds are renderered with 3D objects

◆ setRendering3DDihedrals()

void TissueForge::system::setRendering3DDihedrals ( const bool & _flag )

Set whether dihedrals are renderered with 3D objects

◆ setSceneBoxColor()

HRESULT TissueForge::system::setSceneBoxColor ( const FVector3 & color )

Set the scene box color.

Parameters

color

Returns: HRESULT

◆ setShininess() [1/2]

HRESULT TissueForge::system::setShininess ( const float & shininess )

Set the shininess.

Parameters

shininess

Returns: HRESULT

◆ setShininess() [2/2]

HRESULT TissueForge::system::setShininess	(	const float &	shininess,
		const unsigned int &	srFlag )

Set the shininess of a subrenderer.

Parameters

shininess
srFlag

Returns: HRESULT

◆ setSpecularColor() [1/2]

HRESULT TissueForge::system::setSpecularColor ( const FVector3 & color )

Set the specular color.

Parameters

color

Returns: HRESULT

◆ setSpecularColor() [2/2]

HRESULT TissueForge::system::setSpecularColor	(	const FVector3 &	color,
		const unsigned int &	srFlag )

Set the specular color of a subrenderer.

Parameters

color
srFlag

Returns: HRESULT

◆ showDiscretization()

HRESULT TissueForge::system::showDiscretization ( const bool & show )

Set flag to draw/not draw discretization.

Parameters

show	flag; true says to show

Returns: HRESULT

◆ showingDiscretization()

bool TissueForge::system::showingDiscretization ( )

Test whether discretization is current shown.

Returns: true; false

◆ toggleRendering3DAll()

void TissueForge::system::toggleRendering3DAll ( )

Toggle whether bonds, angle and dihedrals are renderered with 3D objects

◆ toggleRendering3DAngles()

void TissueForge::system::toggleRendering3DAngles ( )

Toggle whether angles are renderered with 3D objects

◆ toggleRendering3DBonds()

void TissueForge::system::toggleRendering3DBonds ( )

Toggle whether bonds are renderered with 3D objects

◆ toggleRendering3DDihedrals()

void TissueForge::system::toggleRendering3DDihedrals ( )

Toggle whether dihedrals are renderered with 3D objects

Namespaces

Functions

Function Documentation

◆ addRenderArrow() [1/2]

◆ addRenderArrow() [2/2]

◆ cameraCenter()

◆ cameraDisableLagging()

◆ cameraEnableLagging()

◆ cameraGetLagging()

◆ cameraIsLagging()

◆ cameraMoveTo() [1/2]

◆ cameraMoveTo() [2/2]

◆ cameraReset()

◆ cameraRollLeft()

◆ cameraRollRight()

◆ cameraRotateByEulerAngle()

◆ cameraRotateDown()

◆ cameraRotateLeft()

◆ cameraRotateRight()

◆ cameraRotateToAxis()

◆ cameraRotateToEulerAngle()

◆ cameraRotateUp()

◆ cameraRotation()

◆ cameraSetLagging()

◆ cameraToggleLagging()

◆ cameraTranslateBackward()

◆ cameraTranslateDown()

◆ cameraTranslateForward()

◆ cameraTranslateLeft()

◆ cameraTranslateRight()

◆ cameraTranslateUp()

◆ cameraViewBack()

◆ cameraViewBottom()

◆ cameraViewFront()

◆ cameraViewLeft()

◆ cameraViewRight()

◆ cameraViewTop()

◆ cameraZoom()

◆ cameraZoomBy()

◆ cameraZoomIn()

◆ cameraZoomOut()

◆ cameraZoomTo()

◆ compile_flags()

◆ cpu_info()

◆ decorated()

◆ decorateScene()

◆ egl_info()

◆ getAmbientColor()

◆ getBackgroundColor()

◆ getDiffuseColor()

◆ getDiscretizationColor()

◆ getGridColor()

◆ getLightColor()

◆ getLightDirection()

◆ getLineWidth()

◆ getLineWidthMax()

◆ getLineWidthMin()

◆ getRenderArrow()

◆ getRenderer()

◆ getRendering3DAngles()

◆ getRendering3DBonds()

◆ getRendering3DDihedrals()

◆ getSceneBoxColor()

◆ getShininess()

◆ getSpecularColor()

◆ gl_info()

◆ removeRenderArrow()

◆ screenshot() [1/2]

◆ screenshot() [2/2]

◆ setAmbientColor() [1/2]

◆ setAmbientColor() [2/2]

◆ setBackgroundColor()

◆ setDiffuseColor() [1/2]

◆ setDiffuseColor() [2/2]

◆ setDiscretizationColor()

◆ setGridColor()

◆ setLightColor() [1/2]

◆ setLightColor() [2/2]

◆ setLightDirection() [1/2]

◆ setLightDirection() [2/2]
