TissueForge::rendering::GlfwApplication Class Reference

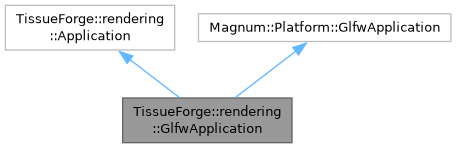

Inheritance diagram for TissueForge::rendering::GlfwApplication:

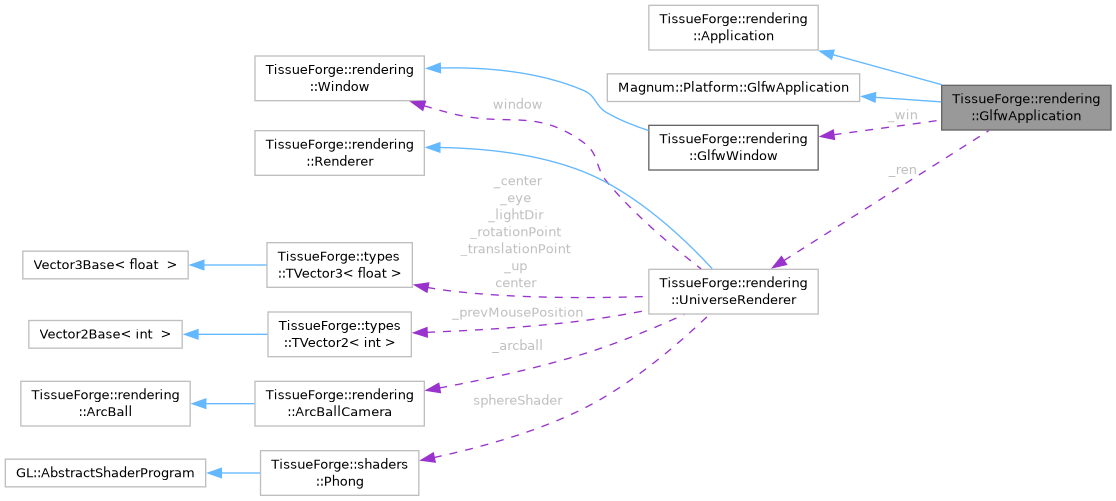

Collaboration diagram for TissueForge::rendering::GlfwApplication:

Public Types
typedef Magnum::Platform::GlfwApplication::Arguments	Arguments

Public Member Functions
	GlfwApplication (const Arguments &args)
HRESULT	createContext (const Simulator::Config &conf) override
HRESULT	pollEvents () override
HRESULT	waitEvents () override
HRESULT	waitEventsTimeout (double timeout) override
HRESULT	postEmptyEvent () override
HRESULT	setSwapInterval (int si) override
void	drawEvent () override
GlfwWindow *	getWindow () override
UniverseRenderer *	getRenderer () override
HRESULT	redraw () override
Magnum::GL::AbstractFramebuffer &	framebuffer () override
HRESULT	mainLoopIteration (double timeout) override
void	viewportEvent (ViewportEvent &event) override
void	keyPressEvent (KeyEvent &event) override
void	mousePressEvent (MouseEvent &event) override
void	mouseReleaseEvent (MouseEvent &event) override
void	mouseMoveEvent (MouseMoveEvent &event) override
void	mouseScrollEvent (MouseScrollEvent &event) override
void	exitEvent (ExitEvent &event) override
int	windowAttribute (WindowAttributes attr) override
HRESULT	setWindowAttribute (WindowAttributes attr, int val) override
HRESULT	destroy () override
HRESULT	close () override
HRESULT	show () override
HRESULT	messageLoop (double et) override
HRESULT	showWindow ()
bool	contextMakeCurrent () override
bool	contextHasCurrent () override
bool	contextRelease () override
Public Member Functions inherited from TissueForge::rendering::Application
virtual HRESULT	run (double et)
virtual HRESULT	simulationStep ()

Public Attributes
GlfwWindow *	_win
UniverseRenderer *	_ren
Int	_substeps = 1
bool	_pausedSimulation = false
bool	_mousePressed = false
Timeline	_timeline
Public Attributes inherited from TissueForge::rendering::Application
std::vector< GlfwWindow * >	windows

Additional Inherited Members
Protected Attributes inherited from TissueForge::rendering::Application
bool	_dynamicBoundary = true
Magnum::Float	_boundaryOffset = 0.0f
int	currentStep = 0

Constructor & Destructor Documentation

GlfwApplication()

TissueForge::rendering::GlfwApplication::GlfwApplication

(

const Arguments &

args

)

creates the app, but does not create the context.

Member Function Documentation

close()

HRESULT TissueForge::rendering::GlfwApplication::close ( )

overridevirtual

Implements TissueForge::rendering::Application.

contextHasCurrent()

bool TissueForge::rendering::GlfwApplication::contextHasCurrent ( )

overridevirtual

Implements TissueForge::rendering::Application.

contextMakeCurrent()

bool TissueForge::rendering::GlfwApplication::contextMakeCurrent ( )

overridevirtual

Implements TissueForge::rendering::Application.

contextRelease()

bool TissueForge::rendering::GlfwApplication::contextRelease ( )

overridevirtual

Implements TissueForge::rendering::Application.

createContext()

HRESULT TissueForge::rendering::GlfwApplication::createContext ( const Simulator::Config & conf )

overridevirtual

Implements TissueForge::rendering::Application.

destroy()

HRESULT TissueForge::rendering::GlfwApplication::destroy ( )

overridevirtual

Implements TissueForge::rendering::Application.

framebuffer()

Magnum::GL::AbstractFramebuffer & TissueForge::rendering::GlfwApplication::framebuffer ( )

overridevirtual

Implements TissueForge::rendering::Application.

getRenderer()

UniverseRenderer * TissueForge::rendering::GlfwApplication::getRenderer ( )

overridevirtual

Implements TissueForge::rendering::Application.

getWindow()

GlfwWindow * TissueForge::rendering::GlfwApplication::getWindow ( )

overridevirtual

Implements TissueForge::rendering::Application.

mainLoopIteration()

HRESULT TissueForge::rendering::GlfwApplication::mainLoopIteration ( double timeout )

overridevirtual

Implements TissueForge::rendering::Application.

messageLoop()

HRESULT TissueForge::rendering::GlfwApplication::messageLoop ( double et )

overridevirtual

Implements TissueForge::rendering::Application.

pollEvents()

HRESULT TissueForge::rendering::GlfwApplication::pollEvents ( )

overridevirtual

This function processes only those events that are already in the event queue and then returns immediately. Processing events will cause the window and input callbacks associated with those events to be called.

On some platforms, a window move, resize or menu operation will cause event processing to block. This is due to how event processing is designed on those platforms. You can use the window refresh callback to redraw the contents of your window when necessary during such operations.

Implements TissueForge::rendering::Application.

postEmptyEvent()

HRESULT TissueForge::rendering::GlfwApplication::postEmptyEvent ( )

overridevirtual

This function posts an empty event from the current thread to the event queue, causing waitEvents or waitEventsTimeout to return.

Implements TissueForge::rendering::Application.

redraw()

HRESULT TissueForge::rendering::GlfwApplication::redraw ( )

overridevirtual

post a re-draw event, to tell the renderer that it should re-draw

Implements TissueForge::rendering::Application.

setSwapInterval()

HRESULT TissueForge::rendering::GlfwApplication::setSwapInterval ( int si )

overridevirtual

Implements TissueForge::rendering::Application.

setWindowAttribute()

HRESULT TissueForge::rendering::GlfwApplication::setWindowAttribute ( WindowAttributes attr, int val )

overridevirtual

Implements TissueForge::rendering::Application.

show()

HRESULT TissueForge::rendering::GlfwApplication::show ( )

overridevirtual

Implements TissueForge::rendering::Application.

waitEvents()

HRESULT TissueForge::rendering::GlfwApplication::waitEvents ( )

overridevirtual

This function puts the calling thread to sleep until at least one event is available in the event queue. Once one or more events are available, it behaves exactly like glfwPollEvents, i.e. the events in the queue are processed and the function then returns immediately. Processing events will cause the window and input callbacks associated with those events to be called.

Since not all events are associated with callbacks, this function may return without a callback having been called even if you are monitoring all callbacks.

On some platforms, a window move, resize or menu operation will cause event processing to block. This is due to how event processing is designed on those platforms. You can use the window refresh callback to redraw the contents of your window when necessary during such operations.

Implements TissueForge::rendering::Application.

waitEventsTimeout()

HRESULT TissueForge::rendering::GlfwApplication::waitEventsTimeout ( double timeout )

overridevirtual

This function puts the calling thread to sleep until at least one event is available in the event queue, or until the specified timeout is reached. If one or more events are available, it behaves exactly like pollEvents, i.e. the events in the queue are processed and the function then returns immediately. Processing events will cause the window and input callbacks associated with those events to be called.

The timeout value must be a positive finite number. Since not all events are associated with callbacks, this function may return without a callback having been called even if you are monitoring all callbacks.

On some platforms, a window move, resize or menu operation will cause event processing to block. This is due to how event processing is designed on those platforms. You can use the window refresh callback to redraw the contents of your window when necessary during such operations.

Implements TissueForge::rendering::Application.

windowAttribute()

int TissueForge::rendering::GlfwApplication::windowAttribute ( WindowAttributes attr )

overridevirtual

Implements TissueForge::rendering::Application.

---

The documentation for this class was generated from the following file:

• source/rendering/tfGlfwApplication.h
